Remove B-Pillar With Reinforcement
- Remove the cavity sealings (1).

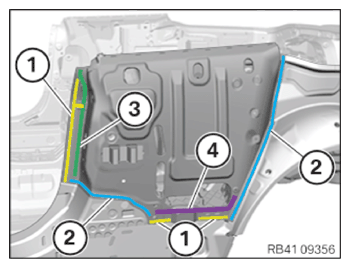

- Release welded connections in areas (1).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections - Open spot-welded adhesive joints in areas (2).
- Release bonded connection in area (3).
- Detach the reinforcement of the B-pillar from the cavity sealing (4) and remove.
