Install The Outer Section Of The A-Pillar

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of cavity sealing (expanded)

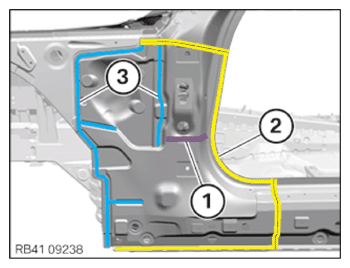

Apply sealant D1 to cavity sealing (1).
CONSUMABLE SPECIFICATION

Sealant D1 (seam sealing) 310 ml 83422409985
Install the new part and the reinforcement plates.
Weld the new part and the reinforcement plates in the areas (2) and (3) according to the new part preparation process.

Courtesy of BMW OF NORTH AMERICA, INC.
