Remove A-Pillar Reinforcement

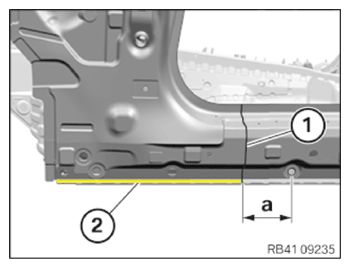

Mark and carry out the separating cut (1) as per dimension a. Thereby disconnect only the outer panel. Dimension a = 140 mm from the center of the hole Ø 20 mm.
Open welded connections in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

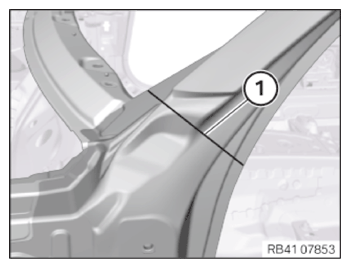

Mark and cut the separating cut (1) as shown. Thereby disconnect only the outer panel.

Courtesy of BMW OF NORTH AMERICA, INC.

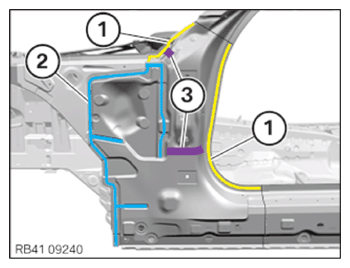

Loosen welded connections in areas (1).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections
Release the spot-welded adhesive joints in area (2).
Release and remove the A-pillar outer section from the cavity sealing (3).

Courtesy of BMW OF NORTH AMERICA, INC.

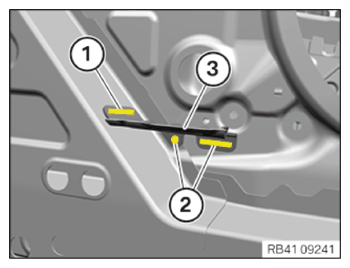

Mark and cut the separating cut (1) as shown.
Open the welded connections in areas (2) and remove the metal section (3).

Courtesy of BMW OF NORTH AMERICA, INC.

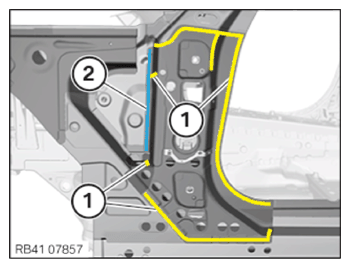

Loosen welded connections in areas (1).
Release the spot-welded adhesive joints in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

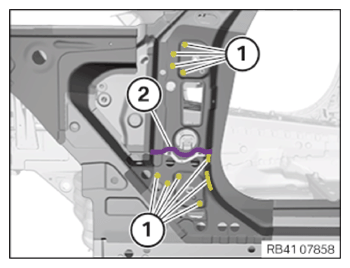

Loosen welded connections in areas (1).
Detach the reinforcement of the A-pillar from the cavity sealing (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

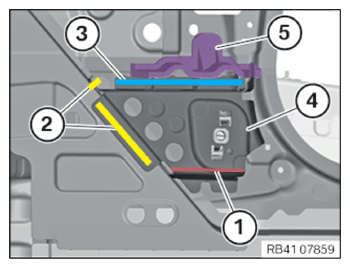

Perform the rough separating cut (1) as shown.
Loosen welded connections in areas (2).
Release the spot-welded adhesive joints in area (3).
Remove the hinge mount (4) together with the cavity sealing (5).

Courtesy of BMW OF NORTH AMERICA, INC.

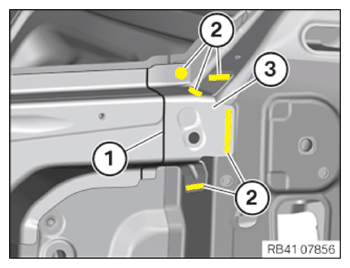

Open welded connections in areas (1) and (2).
Remove section of the hinge mount (3).

Courtesy of BMW OF NORTH AMERICA, INC.
