Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work

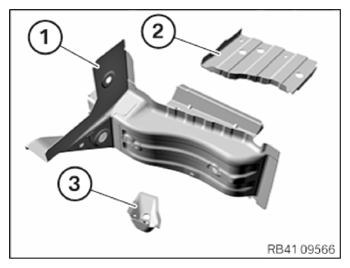

- Prepare the following new parts (see Electronic Parts Catalog [EPC]):
Side frame connection. (1)
Reinforcement of side frame (2)
Holder of front subframe (3)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
Material Quantity Adhesive K1 1 Blind rivet N1 15 Coarse thread bolt 5 Cleaning agent R1 1 Cleaning agent R2 1 Sealing compound D2 1 Cavity protection wax remover
