Installing The Connection Between Engine Mount And Side Frame

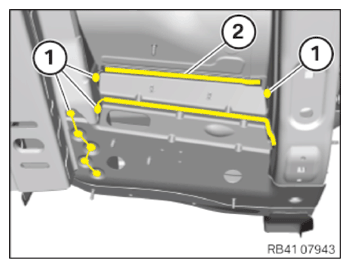

- Install reinforcement plate (2) and weld in areas (1).

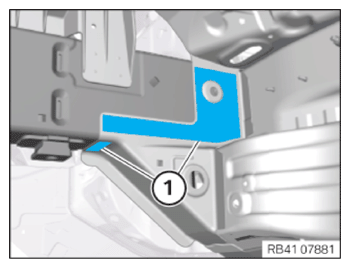

- Apply adhesive K1 to the bonding surfaces (1) on the vehicle and on the new part.ADHESIVE SPECIFICATION
Body adhesive K1 195 ml 83190413015 - Install the connecting plate.
During the installation, make sure that there is enough adhesive on the bonding surfaces.

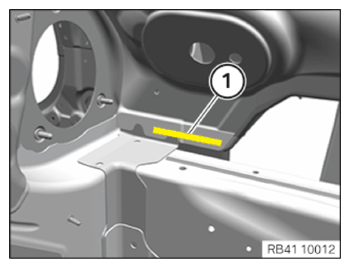

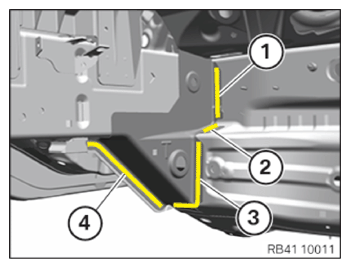

- Weld the connecting plate in areas (1) to (4).
- Avoid a very high heat input in the area (1).
The cowl cross-member lying behind the area (1) is filled with inflammable cavity foam.
In case of smoke formation: Stop the welding procedure and cool the welded area with compressed air if applicable.

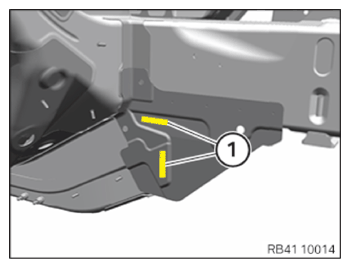

- Weld the new part in areas (1) and (2).
- Note the spot-welded adhesive joints of the panel lying above with the floor panel in the area (2). Avoid excessive application of heat. Cool the area (2) with compressed air as appropriate.

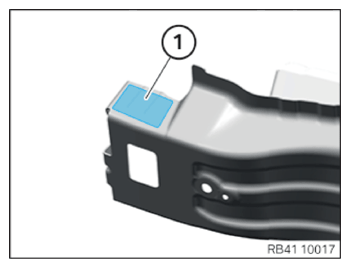

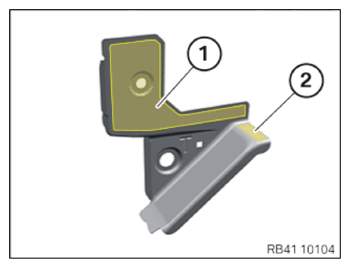

- Apply the adhesive K1 on the bonding surfaces (1) and (2) of the vehicle and affix on new part.

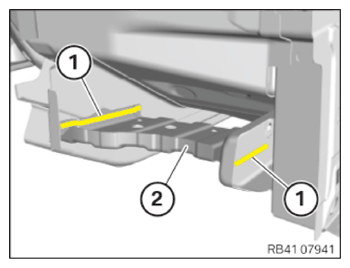

- Install the joint plate and rivet it in areas (1) and (2) with blind rivets N1.
During the installation, make sure that there is enough adhesive on the bonding surfaces.
CONSUMABLE SPECIFICATIONBlind rivet N1

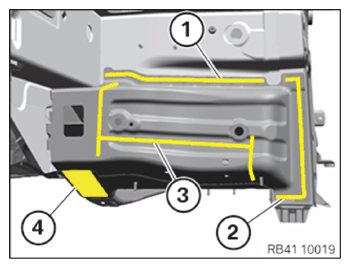

ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Weld the new part in areas (1) to (4).
- Avoid a very high heat input in the area (1).
The cowl cross-member lying behind the area (1) is filled with inflammable cavity foam.
In case of smoke formation: Stop the welding procedure and cool the welded area with compressed air if applicable.
- Weld the new part in the area (1).
- Weld the new part in areas (1).

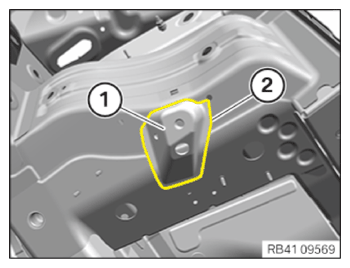

- Position the holder (1) and weld in the area (2).
