Preparing New Part
- Mark the separating cut on the new part according to the separating cut on the vehicle +15 mm material allowance and cut.
- Fit the new parts together with the side panel and fix in place.
- Prepare for overlapping joining by welding in area (1).
- Prepare for joining by welding in areas (1) and (2).
- Prepare for joining by welding in areas (1) and (2).
Observe the spot-welded adhesive joint below in the area (2).
Replacing the coarse thread bolt and threaded weld bolts (steel surface)

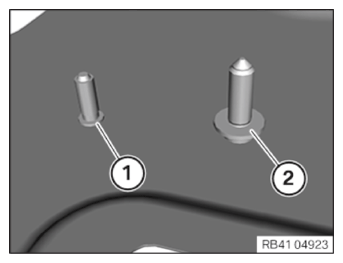

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts : Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.
