Installing The Outer Wheel Arch Section With The Reinforcement

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

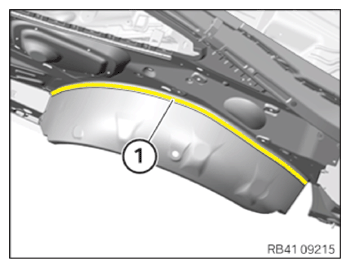

Install new part of outer wheel arch section and weld in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new part in the areas (1) and (2).
In this process, avoid excessively high heat input in the adjacent adhesive area (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

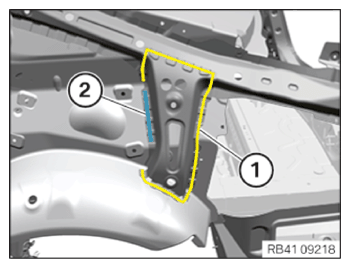

Install the new part and weld it in areas (1) and (2).
In area (2), note the underlying spot-welded adhesive joint.
Avoid a very high heat input in the area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding)

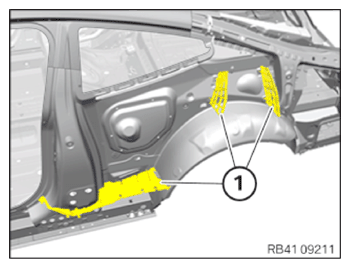

Apply sealant to the new cavity sealings (1). Install cavity sealings (1).
CONSUMABLE SPECIFICATION

Sealant D2 290 ml 83425A547B9

Courtesy of BMW OF NORTH AMERICA, INC.
