Tightening the screw connections on the wheel carrier
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

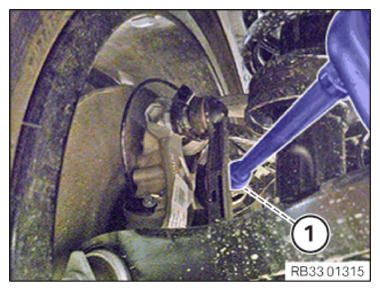

- Slacken screw (1) on the control arm by one turn.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATION

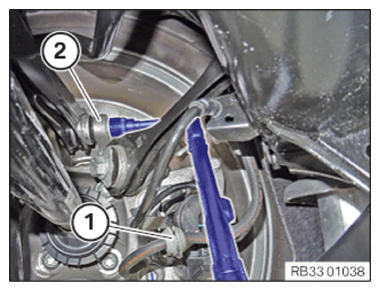

Control arm to wheel carrier M14 Replace screw. Joining torque 165 Nm Tighten in normal position. Angle of rotation 90° - Detach the brake hose (1) from the bracket.
- Slacken screw connection (2) to the upper wishbone by one turn.
- Tighten screw connection (2).TIGHTENING TORQUE SPECIFICATION
Upper wishbone to wheel carrier M12 Replace screw and nut. Joining torque 100 Nm Tighten in normal position. Angle of rotation 90° - Attach the brake hose (1) in the bracket.

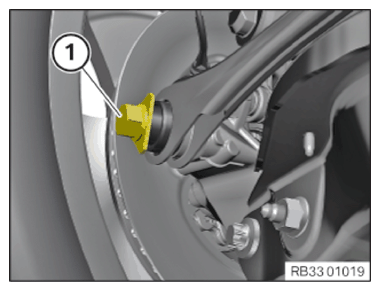

- Slacken screw (1) on the control link by one turn.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATION

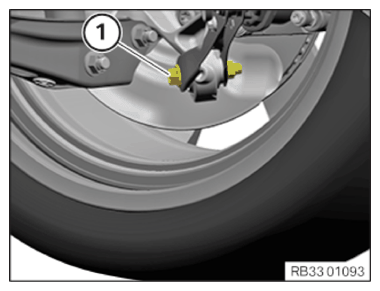

Track arm to wheel carrier M12 Replace screw. Joining torque 100 Nm Tighten in normal position. Angle of rotation 90° - Slacken screw connection (1) to the trailing arm by one turn.
- Tighten the screw connection (1).TIGHTENING TORQUE SPECIFICATION
Trailing arm to wheel carrier M12 Replace screw and nut.
Tighten in normal position.Tightening torque 100 Nm
