Removing the Roof function center (FZD)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

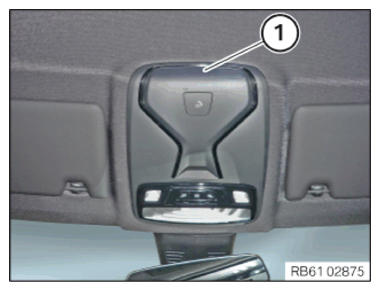

- Unclip the cover (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

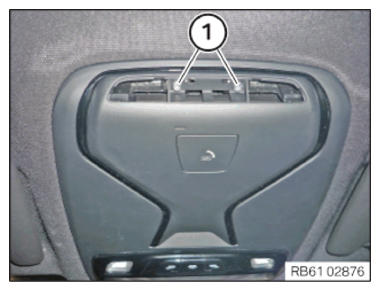

- Loosen screws (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

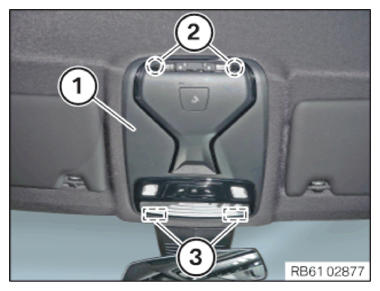

- Unclip the roof function center (FZD) (1) from the clamps (2).
- Ease out the Roof function center (FZD) (1) from the guides (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

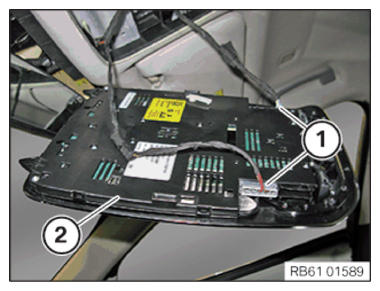

- Unlock and disconnect plug connections (1).
- Unclip the cable bracket from FZD (2) and remove FZD (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
