Partly removing left and right luggage compartment wheel arch trim panel
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Partly remove luggage compartment wheel arch trim panel on left
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

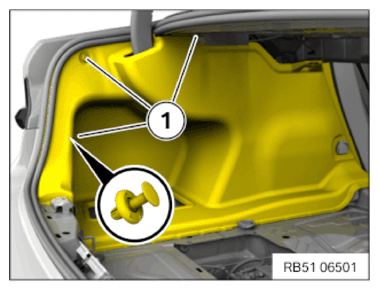

- Loosen the expanding rivet (1).

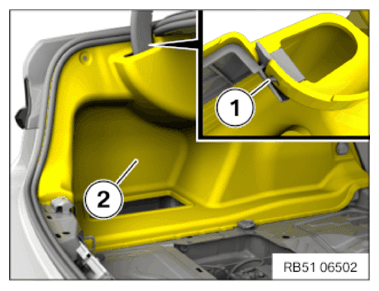

- Press luggage compartment wheel arch trim panel lug (2) on the outer side of the hinge forwards over the stop on the trim (1).
- Feed out the luggage compartment wheel arch trim panel (2) under the sealing lip of the seal for the trunk lid.
Partially remove the luggage compartment wheel arch trim panel on the right
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.Removing the emergency release handle for the tailgate (additional work for US version)

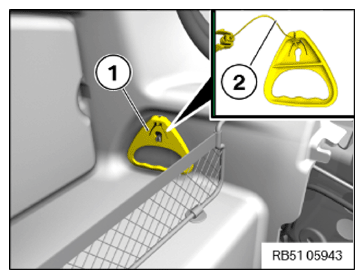

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Loosen the emergency release handle (1) for the tailgate from the holder.
- Detach the Bowden cable (2) and remove the emergency release handle (1) for the tailgate.

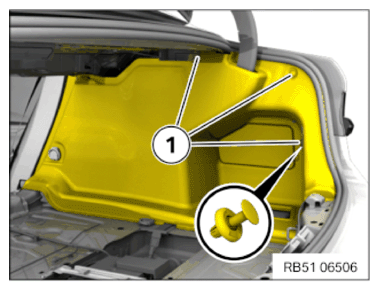

- Loosen the expanding rivet (1).

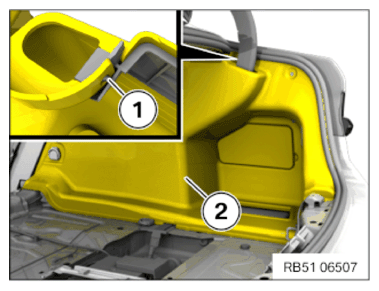

- Press luggage compartment wheel arch trim panel lug (2) on the outer side of the hinge forwards over the stop on the trim (1).
- Feed out the luggage compartment wheel arch trim panel (2) under the sealing lip of the seal for the trunk lid.
