Check the setting of the glass slide/tilt sunroof panel
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Check whether the distance of the glass slide/tilt roof panel to the front roof and at the rear is the same and correct if necessary.

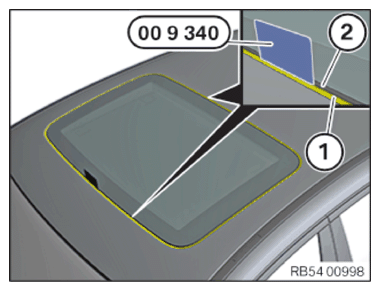

- Slide the special tool 0 493 687 (00 9 340)
between the gasket (1) and the glass slide/tilt sunroof panel (2).
The resistance when shifting the special tool must be the same at the front and rear.

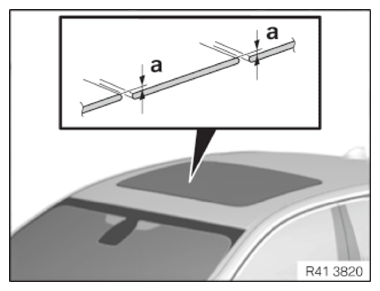

- Make sure that the glass slide/tilt roof panel at the front lies flush with the roof outer skin and is lower by a maximum of the dimension (a).TECHNICAL DATA DESCRIPTION
Gap dimension roof outer skin to glass slide/tilt sunroof panel 1 roof outer skin; 2 glass slide/tilt sunroof panel a 0.7+0.75-0.75 mm - Make sure that the glass slide/tilt roof panel at the rear lies flush with the roof outer skin and higher by a maximum of the dimension (a).TECHNICAL DATA DESCRIPTION

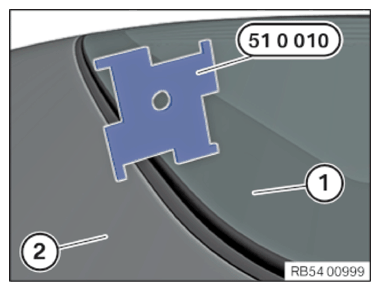

Gap dimension glass slide/tilt sunroof panel to roof outer skin 1 glass slide/tilt sunroof panel; 2 roof outer skin a 0.7+0.75-0.75 mm - Measure the position of the glass slide/tilt roof panel (1) to roof (2) with special tool 0 495 259 (51 0 010)
.
