Releasing the electric auxiliary coolant pump for the charge air cooler and/or air conditioning condenser

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Non-visible damage to the coolant pump .
Forcibly removing, installing or dropping the coolant pump down will damage it .

Remove and install the coolant pump without damaging it and without applying external force.
Avoid impacts/knocks to the coolant pump (e.g. by tools, falling down, hard contact with base).
Replace coolant pump after being dropped or hard impacts/knocks.

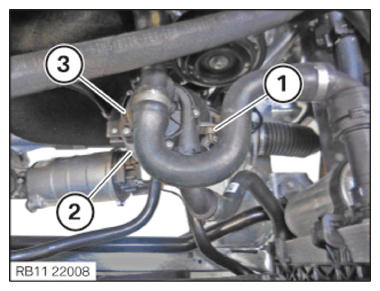

Loosen nut (1).
Thread out holder (2) and set aside.
Feed out the electrical auxiliary coolant pump (3) and suspend it to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
