Removing the tail light on the left and right side panel

NOTE: Description is for left component only. Procedure on the right side is identical

Removing the tail light on the side panel

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details

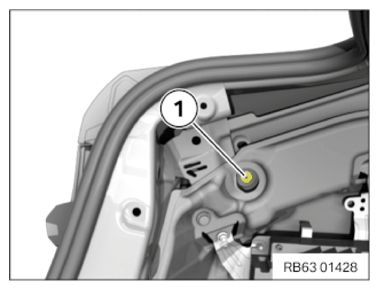

Loosen nut (1)

Courtesy of BMW OF NORTH AMERICA, INC.

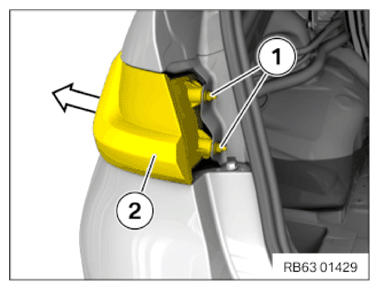

Release nuts (1) and feed out the tail light on the side panel (2) in arrow direction

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Observe the note on unlocking and disconnecting plug connections
For ADDITIONAL INFORMATION see: 6113... Unlocking and disconnecting different plug connections

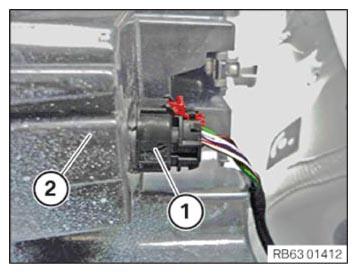

Unlock plug connection (1) and disconnect
Remove the tail light on the side panel (2)

Courtesy of BMW OF NORTH AMERICA, INC.
