Adjusting headlights
NOTE:
TECHNICAL INFORMATION
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times
For ADDITIONAL INFORMATION see: 6310... Test prerequisite for the headlight adjustment
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times
For ADDITIONAL INFORMATION see: 6310... Test prerequisite for the headlight adjustment
NOTE:
TECHNICAL INFORMATION
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times
For ADDITIONAL INFORMATION see: 6310... Test prerequisite for the headlight adjustment
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times
For ADDITIONAL INFORMATION see: 6310... Test prerequisite for the headlight adjustment
NOTE:
Description is for left component only. Procedure on the right side is identical
- If applicable, remove the cover over the adjustment screws for the headlight adjustment

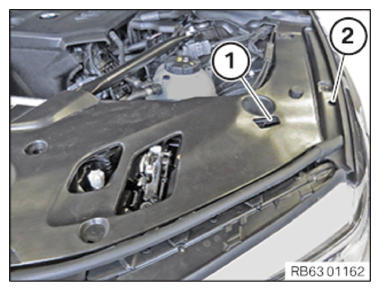

- Adjust the height at the adjustment screw (1)
- US version:
Only carry out lateral adjustment setting if the plug on the adjustment screw in the lateral adjustment is missing or damaged
If applicable, remove the damaged plug (see additional information)
- Set the correct lateral adjustment by turning the adjustment screw (2)
- US version: If the lateral adjustment has been checked or corrected: Replace the plug and press it into the adjustment screw for the lateral adjustment without damaging the plug (see additional information)
- If applicable, install cover over the adjustment screws for the headlight adjustment
