Remove roof antenna
NOTE:
RISK OF DAMAGE
Fold the headlining
Bending of the headlining can result in the need for the headlining to be replaced
Fold the headlining
Bending of the headlining can result in the need for the headlining to be replaced
- Carry out tasks with a second person to assist
- Support the headlining at the front and back
Preliminary work
- Refer to REMOVING THE COVERS FOR THE INTERIOR REARVIEW MIRROR .
- Refer to REMOVING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to REMOVING THE LEFT AND RIGHT SUN VISOR .
- Refer to REMOVING COUNTER SUPPORTS FOR SUN VISOR ON LEFT AND RIGHT .
- Refer to REMOVING THE FRONT VANITY MIRROR LIGHT .
- Refer to REMOVING THE HANDS-FREE MICROPHONE LEFT AND RIGHT .
- Refer to REMOVING THE ROOF FUNCTION CENTER (FZD) .
- Refer to REMOVING THE LEFT AND RIGHT B-PILLAR TRIM PANELS PARTIALLY .
- Refer to REMOVING INTERIOR ROOF LIGHT .
- Refer to TRIM OF THE 3RD BRAKE LIGHT .
- Refer to REMOVING BOTH C-PILLAR TRIM PANELS .
- Refer to REMOVING ALL GRAB HANDLES .
- Refer to REMOVING THE HEADLINING (WITH SLIDING/TILTING SUNROOF) .
- Refer to LOWERING ROOFLINER .
- Refer to REMOVING THE ROOF-MOUNTED ANTENNA HOUSING .

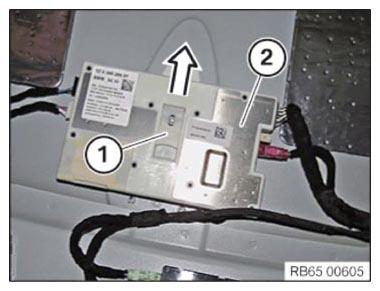

- Unlock the lock (1) downward
- Slide the TCB (2)
in the direction of the arrow

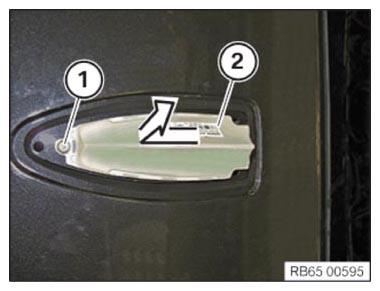

- Loosen screw (1)
- Remove the roof antenna (2) in the direction of the arrow
