Install the roof-mounted antenna

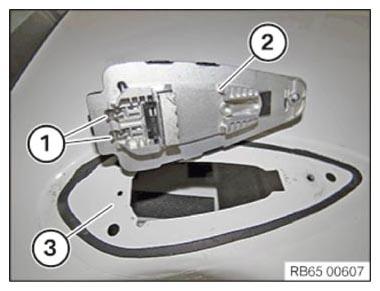

• Locks (1)  on the roof-mounted antenna (2)  must be correctly fitted under the roof (3)

  Courtesy of BMW OF NORTH AMERICA, INC.

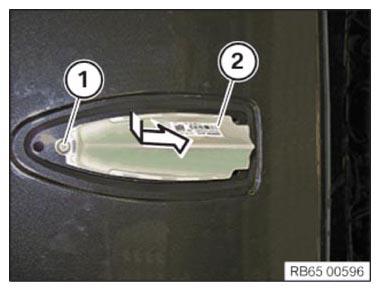

• Install the roof-mounted antenna (2)  in the direction of the arrow
• Tighten down screw (1)
  TIGHTENING TORQUE SPECIFICATION



  Roof-mounted aerial to roof outer skin
  screw	Tightening torque	4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

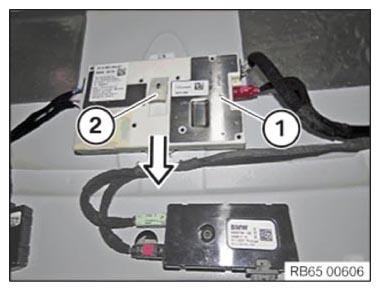

• Correctly position TCB (1)  and push in arrow direction till the lock is engaged (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE ROOF-MOUNTED ANTENNA HOUSING .
• Refer to INSTALLING THE HEADLINING (LOWERED) .
• Refer to INSTALLING THE HEADLINING (WITH SLIDING/TILTING SUNROOF) .
• Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING THE LEFT AND RIGHT HANDS-FREE MICROPHONE .
• Refer to INSTALLING FRONT VANITY MIRROR LIGHT .
• Refer to INSTALLING COUNTER SUPPORTS FOR THE SUN VISOR ON LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT SUN VISORS .
• Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT B-PILLAR TRIM PANEL PARTIALLY .
• Refer to INSTALLING ALL GRAB HANDLES .
• Refer to INSTALLING INTERIOR ROOF LIGHT .
• Refer to INSTALLING BOTH C-PILLAR TRIM PANELS .
• Refer to TRIM OF THE 3RD INSTALLING THE BRAKE LIGHT .
