Installing the rear tweeter

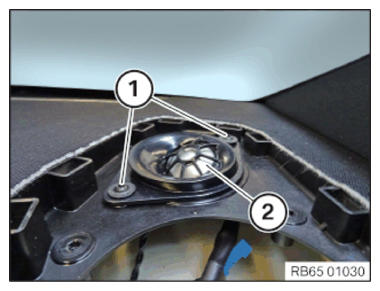

- Feed in the tweeter (2) with the cable and position correctly
- Tighten down screws (1)
TIGHTENING TORQUE SPECIFICATION
| Speaker to rear shelf/support/head restraint | ||
| Screw | Tightening torque | 1.8 Nm |
Follow-up work
- Refer to INSTALLING THE REAR MID-RANGE SPEAKER .
