Remove rear mid-range speaker
NOTE:
Description is for left component only. Procedure on the right side is identical

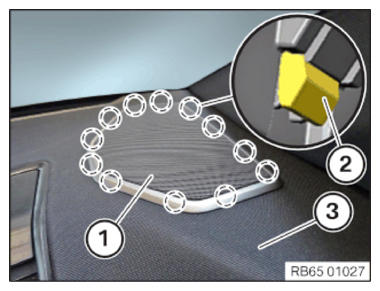

- Unclip the cover (1) with the special tool 0 496 571 (00 9 327) upwards and out of the detents (2)
- Remove the cover (1) from the storage box (3)

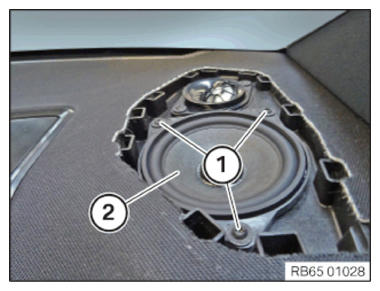

- Loosen screws (1)
- Lift the mid-range speaker (2) slightly

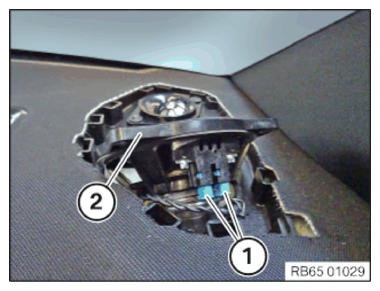

- Unlock and disconnect plug connections (1)
- Remove the mid-range speaker (2)
