Installing the tweeter in the mirror triangle

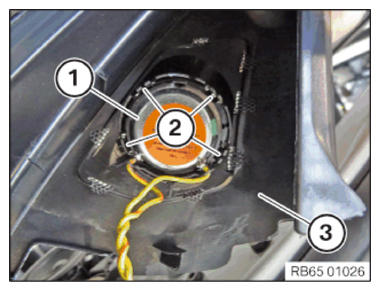

• Correctly place the tweeter (1)  in the cover (3)
• Clip tweeter (1)  into the detents (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

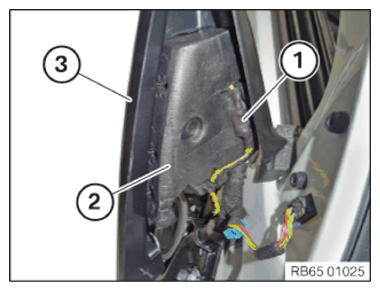

• Insert the foam material (1)  into the cover (3)  and position it correctly
• Feed the resistance (1)  with cable into the foam material (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to PARTIALLY INSTALLING THE COVER ON THE INSIDE OF THE WINDOW FRAME .
• Refer to INSTALLING DOOR TRIM PANEL .
