Replacing the post amplifier
NOTE:

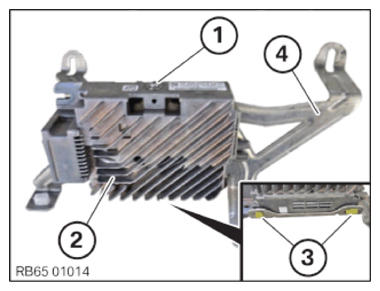

Schematic diagram is for example purposes. Some parts may differ in certain details
- Loosen screw (1)
- Guide out post amplifier (2) with the guides (3) below on the holder (4)
- Remove the post amplifier (2)
- Replace the post amplifier (2)
Parts: Post amplifier
- Feed in the post amplifier (2) with the guides (3) below on the holder (4) and position it correctly
- Tighten down screw (1)
TIGHTENING TORQUE SPECIFICATION
| Post amplifier to holder | ||
| Screw | tightening torque | 3.3 Nm |
