Installing the cover for the M Sport steering wheel

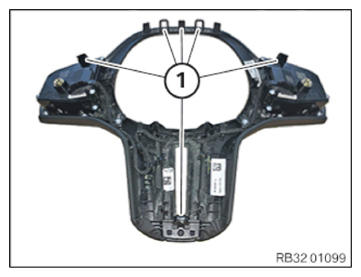

• Check the detents (1) for damage

  Detents (1) must not be damaged or missing

  Courtesy of BMW OF NORTH AMERICA, INC.

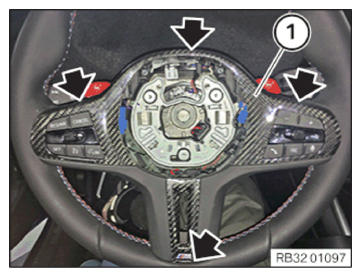

• Carefully clip in cover (1) at catches (Pfeile)

  Courtesy of BMW OF NORTH AMERICA, INC.

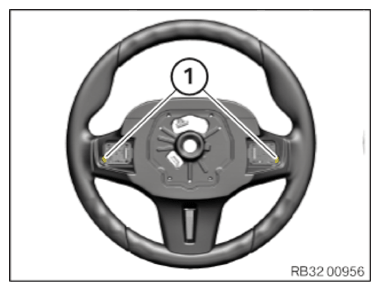

• Tighten screws (1) on the back of the steering wheel

Courtesy of BMW OF NORTH AMERICA, INC.

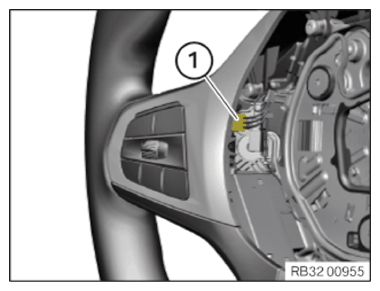

• Connect connectors (1) and lock

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SHIFT PADDLE FOR THE AUTOMATIC TRANSMISSION .
• Refer to INSTALLING THE AIRBAG UNIT (M SPORT STEERING WHEEL) .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
