Removing clean air pipe cylinders 4-6

Precondition

• Ignition is switched off

Preliminary work

• Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .

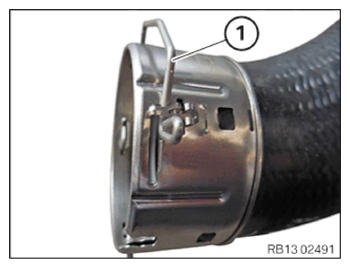

• Unlock clamp (1) and engage in this position

  Courtesy of BMW OF NORTH AMERICA, INC.

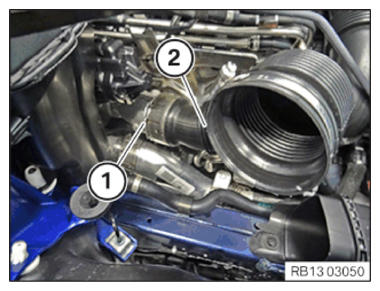

• Unlock the clamp (1)
• Guide out and remove clean air pipe (2) for cylinders 4-6

Courtesy of BMW OF NORTH AMERICA, INC.
