Remove A-pillar trim panel, left and right

NOTE: Description is for left component only. Procedure on the right side is identical

Removing the A-pillar trim panel

WARNING: Pyrotechnic components
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only
Replace any damaged part or ones that have been dropped
For additional information see: 72 00 SAFETY REGULATIONS on handling components with gas generators

NOTE: RISK OF DAMAGE
Damage to the head airbag
Improper use of a tool when removing the trim panel may damage the head airbag

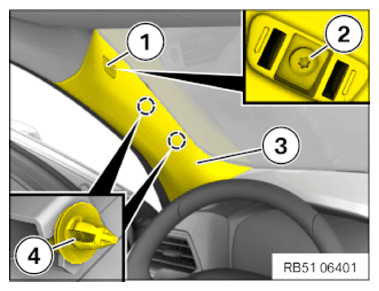

Unclip cover (1) using a suitable special tool from the set of special tools 0 493 752 (00 9 329).
Loosen screw (2)
Unclip A-pillar trim panel (3) with clips (4) and guide it out upwards

Courtesy of BMW OF NORTH AMERICA, INC.
