Installing washer fluid reservoir

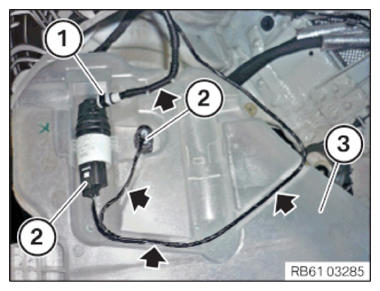

• Connect plug (2).
• Clip the cable into the washer fluid reservoir (3) (arrows).
• Connect the hose pipe (2) and lock it.
• Clip the hose pipe (2) into the washer fluid reservoir (3) (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

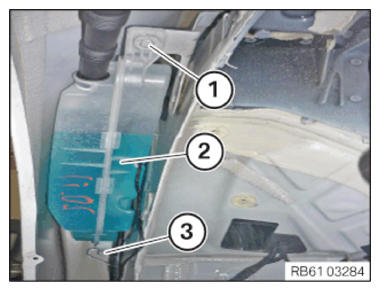

• Position the washer fluid reservoir (2) and feed in towards rear into the holder (3).
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Washer fluid reservoir
  	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

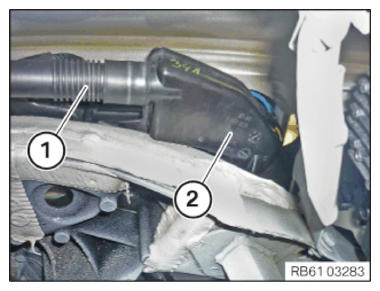

• Connect the filler channel (1) to the fuel filler neck (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to MOUNTING THE WHEEL .
