Removing the covers for the interior mirror

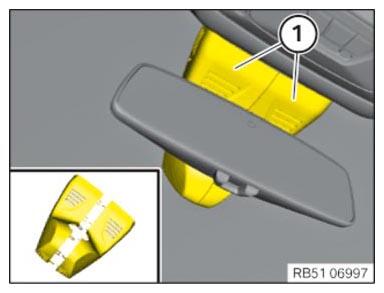

- Version A:
Release the cover panel from the detents with a suitable plastic wedge and remove laterally. (1)

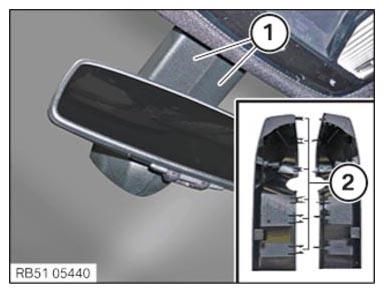

- Version B:
Release the cover panel (1) from the detents (2) with a suitable plastic wedge and remove laterally.

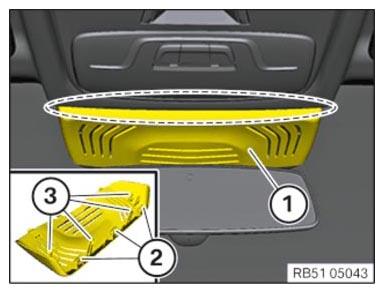

- Version C:
Release cover from the clamps in the marked area using a suitable plastic wedge and pull down a certain distance. (1) (2)

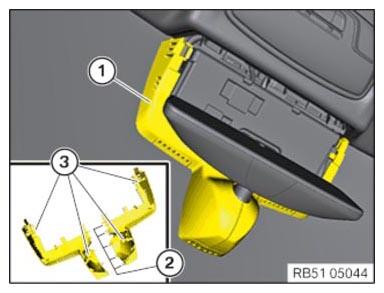

- Release cover (1) at the retaining lugs (3) and remove from the guides to the rear.
- Release cover (1) from the detents (2) and (3) and remove sideways.
- Remove cover (1) from mirror base (2).

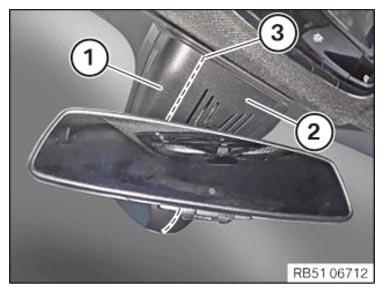

- Version D:
Release covers (1) and (2) using a suitable plastic wedge at the separation point (3) and remove to the side.
