Remove door sill cover strip, interior right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the inner door sill cover strip
NOTE:
RISK OF DAMAGE
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
- Place special tool directly beside the mounting clip.
- Continue unclipping the part without using the tool if possible.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

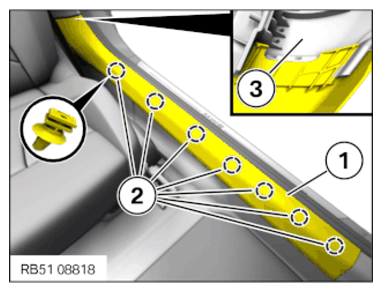

- Release door sill cover strip (1) with the clips (2) from the front, starting with a suitable special tool from the set of special tools 0 493 752 (00 9 329).
- Feed out the door sill cover strip (1) under the rear side trim panel (3) and remove it.

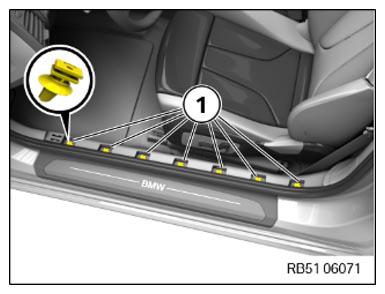

- If necessary, remove clips (1) and attach to door sill cover strip.
