Installing the covers for the interior mirrors

• Version A:

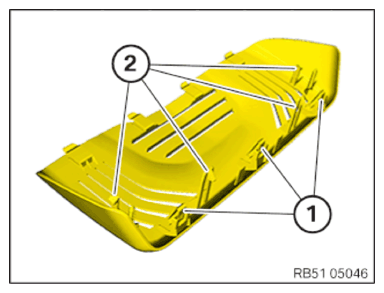

• Check the detents (1) and (2).
• Replace the covers in case of faulty detents (1) or (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

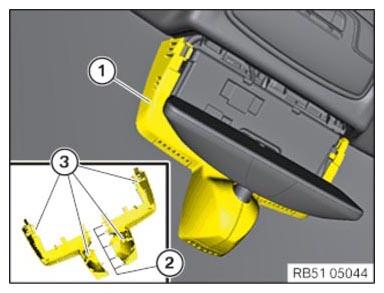

• Feed in the cover (1) and engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

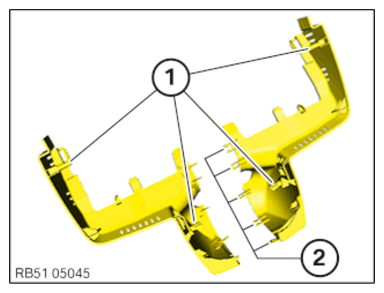

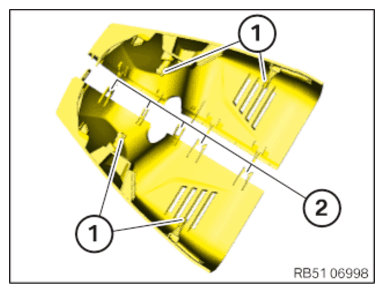

• Check the detents (1) on the covers (2) for damage, if necessary, replace the covers (2).

  The covers (2) must not be damaged or missing.

  Courtesy of BMW OF NORTH AMERICA, INC.

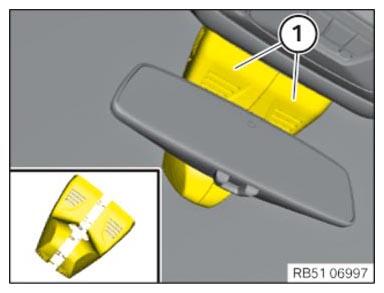

• Position the covers (1) correctly onto the mirror and lock it at the detents (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version C:

Check

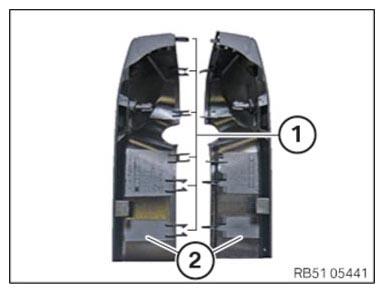

• Check the detents (1) and (2) of the covers for damage.

Result

» Detent is damaged.

Measure

• Replace cover.

Courtesy of BMW OF NORTH AMERICA, INC.

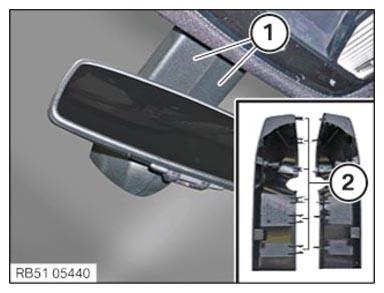

• Guide in cover (1) on the left and right and engage on detents (2) and (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

• Check clamps (1) for damage; replace if necessary.
• Check detents (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detent is damaged.

Measure

• Replace cover.

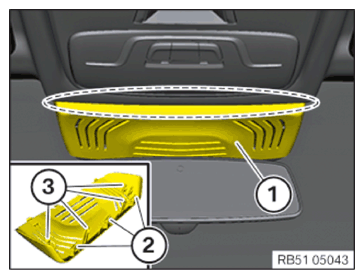

• Feed the cover (1) into the guides at the front and engage it at the snap-in lugs (3) and the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version D:

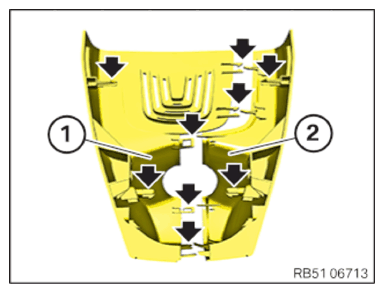

• Check detents (arrows) on the covers (1) and (2) for damage, if necessary replace the covers (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

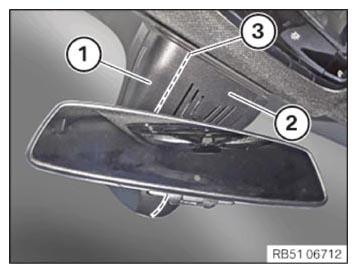

• Position the covers (1) and (2) correctly on the mirror and engage it at the separation point (3).

Courtesy of BMW OF NORTH AMERICA, INC.
