Installing the engine encapsulation on the exhaust side

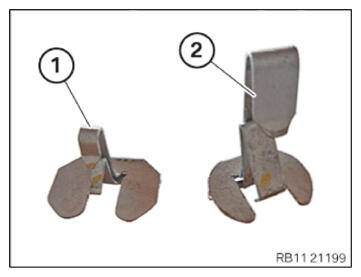

• Replace clips (1)  and (2)  .

  Parts:  Clips

  Courtesy of BMW OF NORTH AMERICA, INC.

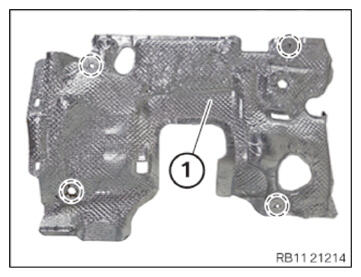

• Check the engine encapsulation (1)  for damage, replace the engine encapsulation (1)  if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

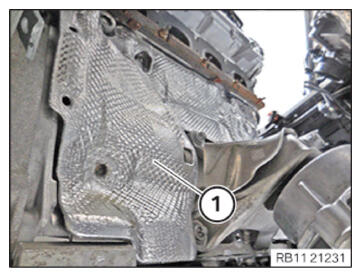

• Feed in engine encapsulation (1)  and position.

  Courtesy of BMW OF NORTH AMERICA, INC.

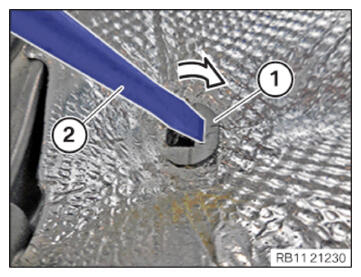

• Fix clips (1)  using a standard screwdriver (2) in the arrow direction  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to PREPARING FOR THE INSTALLATION OF THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE OIL RETURN LINE FOR THE TURBOCHARGER .
• Refer to INSTALLING THE COOLANT RETURNING LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE COOLANT FEED LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING CATALYTIC CONVERTER .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to INSTALLING REINFORCEMENT STRUT .
• Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
• Refer to INSTALLING LAMBDA OXYGEN SENSOR .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
• Refer to INSTALLING CHARGE AIR LINE .
• Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
