Installing the acoustic cover for the oil sump

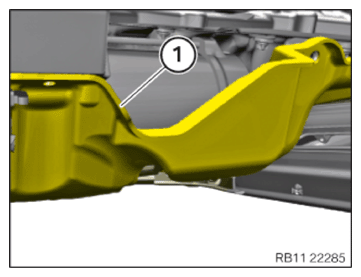

- Insert and position the acoustic cover (1) of the oil pan.

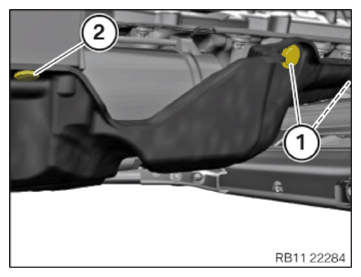

- Secure expanding rivet (1).
- Replace the fir tree clip (2).
Parts: Fir tree clip
- Secure the fir tree clip (2).
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

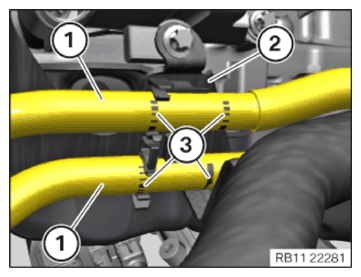

- Position the transmission oil lines (1) on the bracket (2).
Make sure that the marks (3) have been positioned correctly on the holder (2).
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

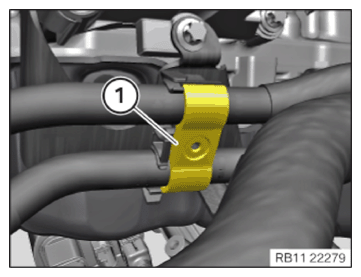

- Insert and install the holder (1).
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

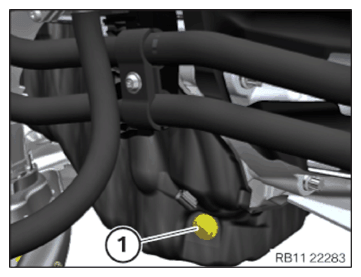

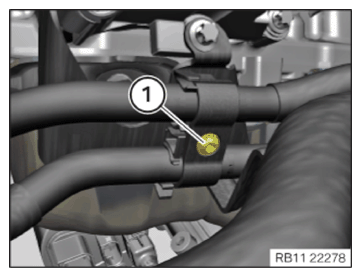

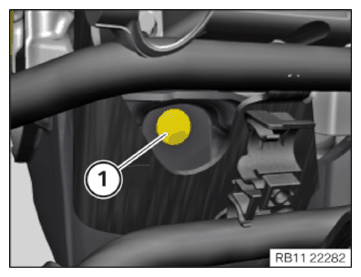

- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
| Holder for transmission oil line | ||
| Screw | Tightening torque | 4 Nm |

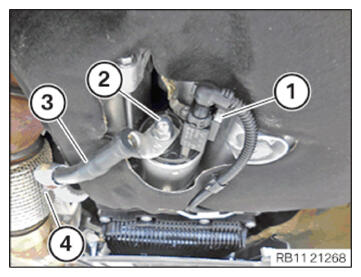

- Connect and lock the connector (1).
- Make sure the connector (1) engages audibly.
- Insert and install the positive battery cable (3).
- Secure positive battery cable (3) at the clamp (4).
- Tighten the nut (2) hand-tight.
CAUTION:
Improper routing of the positive battery cable
.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.

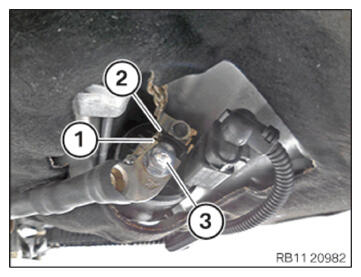

- Attach the positive battery cable (1) correctly to anti-twist lock (2).
- Tighten nut (3).
TIGHTENING TORQUE SPECIFICATION
| Battery positive lead to starter | ||
| M8 | Tightening torque | 13.5 Nm |
Follow-up work
- Refer to RAISING THE FRONT SUBFRAME .
- Refer to PARTIALLY INSTALLING THE AIR DUCT FOR THE BRAKE ON THE LEFT AND RIGHT .
- Refer to ATTACHING THE ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR AT LEFT AND RIGHT .
- Refer to ATTACHING THE LINE CONNECTION TO THE RIDE HEIGHT SENSOR .
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to INSTALLING THE LOWER WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
- Refer to FASTENING THE WIRING HARNESS SECTION TO THE LEFT SHOCK TOWER .
- Refer to FASTENING THE WIRING HARNESS SECTION TO THE RIGHT SHOCK TOWER .
- Refer to INSTALLING THE SIDE PANEL SEAL .
- Refer to INSTALLING THE LATERAL HOOD SEALS .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
