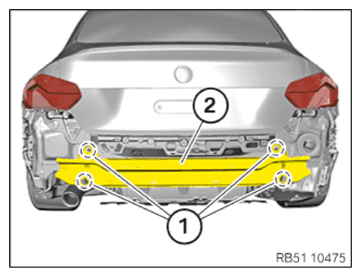

Installing the support for the rear bumper cover

• Position the support for the rear bumper cover (2).
• Tighten nuts (1).
  TIGHTENING TORQUE SPECIFICATION



  Support for rear bumper cover to body
  Nut M12	tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

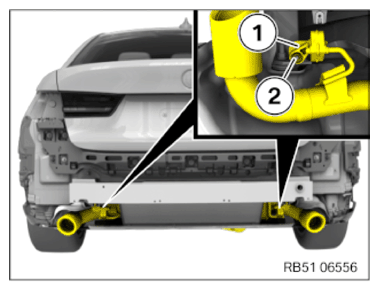

• Position the rear silencer with holder (1) upwards on the support for the rear bumper cover.
• Tighten nuts (2).
  TIGHTENING TORQUE SPECIFICATION



  Rear silencer to support for rear bumper cover
  Nut M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

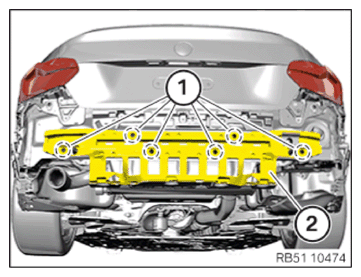

• Position brace (2) for the rear bumper on the support.
• Mount the expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

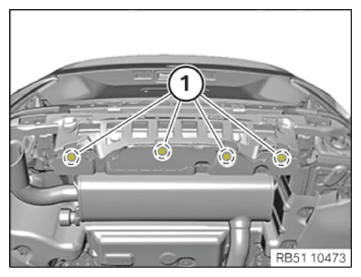

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Rear bumper cover mount to support for rear bumper
  Hexagon screw for thermoplastic	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING TAIL LIGHT ON LEFT AND RIGHT SIDE PANEL .
• Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL (PARTIALLY REMOVED) .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
