Adjust The Striker On The Hood

Check

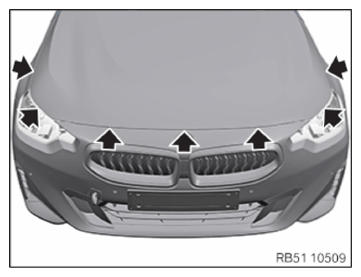

• Check the gap dimensions between the hood and the adjoining components.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TECHNICAL DATA SPECIFICATION

  Gap dimension hood to side panel
  1 hood; 2 side panel Courtesy of BMW OF NORTH AMERICA, INC.	a	3.2 +1.2-1.2 mm
  	b	1.1 +1.6-1.6 mm

  TECHNICAL DATA SPECIFICATION

  Gap dimension from hood to bumper cover
  1 hood; 2 bumper cover Courtesy of BMW OF NORTH AMERICA, INC.	a	3.5 +1.1-1.1 mm
  	b	0.9 +1.5-1.5 mm

  TECHNICAL DATA SPECIFICATION

  Gap dimension hood to headlight
  1 hood; 2 headlight Courtesy of BMW OF NORTH AMERICA, INC.	a	3.9 +2-2 mm

Result

» Gap dimensions do not correspond to the specifications.

Measure

• Adjust the striker.

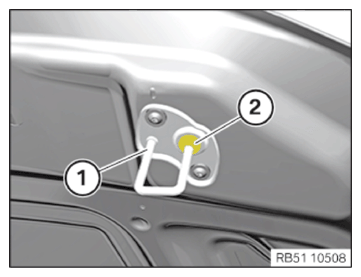

• Adjust striker (1) by twisting the nut (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting hood stop pads

• Screw in stop pads (1) fully until the pin (2) can be pulled out.

  Pull pin (2) out approx. 5 mm.

• Slowly close the hood. The pin (2) will be pressed into stop pad (1) while doing so.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Raise hood.
• Unscrew stop pad (1) until stop pad is flush with upper edge of pin (2).
