Installing the drivetrain for the glass slide/tilt roof panel

Precondition

The glass slide/tilt roof panel is closed.

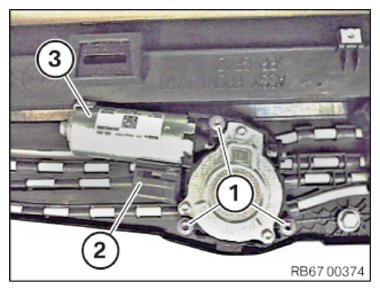

• Guide in drivetrain (3)  for the glass slide/tilt roof panel and position it correctly.
• Connect and lock all connectors (2)  .
• Tighten down screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Drive motor for panorama glass roof to body
  Screw	tightening torque	5.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
