Remounting the headlight bracket

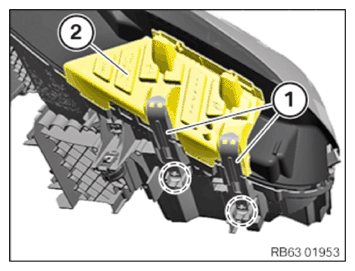

Removing headlight brackets

• Unclip the retaining clips (1)  in the marked area and remove to the front.
• Disengage the holder (2)  on the headlight and remove to the front.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the bracket on the headlight

• Position the bracket (2)  on the headlight and engage.
• Clip in the retaining clips (1)  in the marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.
