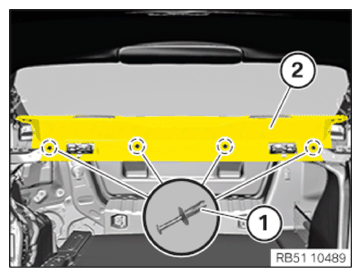

Installing the trim panel for the rear shelf

• Install the trim panel (2)  .
• Clip the wiring harness with all the holders onto the trim panel for the rear shelf (2)  .
• Connect all connectors and lock.
• Feed the trim panel (2)  into the guides and position it correctly.
• Secure expanding rivet (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
• Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
• Refer to INSTALLING THE LEFT AND RIGHT SEATBELT FINISHER STRIP .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
