Installing The Rear Luggage Compartment Floor

• Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.

  CONSUMABLE SPECIFICATION

  Cleaning agent R2

  500 ml

  83190417324

• Clean bonding surfaces on vehicle and on new part with cleaning agent R1.

  CONSUMABLE SPECIFICATION

  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Apply adhesive K5 to the bonding surfaces.

  ADHESIVE SPECIFICATION

  Body adhesive K5

  50 ml

  83192158654

• Install the new part and rivet in areas (1) to (3) with blind rivets N3.

  CONSUMABLE SPECIFICATION

  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install blind rivets N3 in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

• Drill a hole with a diameter of 4.2 mm.

  In the case of glued connections, only drill the hole after the adhesive has fully hardened.

• Screw in the EMC screw.

  CONSUMABLE SPECIFICATION

  EMC screw

  SF Plus M5x15

  83190301639

• Seal the EMC screw with the sealant.

  CONSUMABLE SPECIFICATION

  Sealant D1 (seam sealing)

  310 ml

  83425A547B4

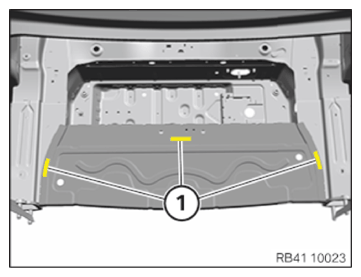

• Install 3 EMC screws in areas (1) after the adhesive has hardened.

  CONSUMABLE SPECIFICATION

  screw  EMC screw, SF Plus, M5x15

  83190301639

  Courtesy of BMW OF NORTH AMERICA, INC.
