61 35 095 Removing and installing control unit/module for seat heating (left or right)
>>
Installing the seat-heating module
Installing the seat-heating module

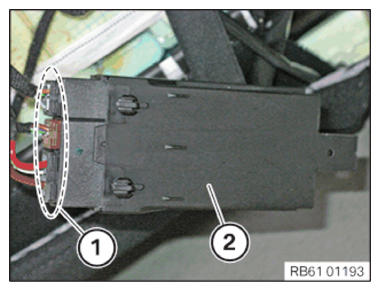

Connect all connectors (1) on the seat-heating module (2).
Courtesy of BMW OF NORTH AMERICA, INC.

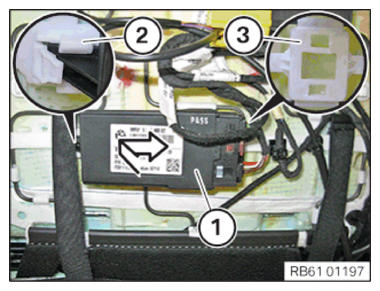

Insert the seat-heating module (1) in arrow direction into the guide (2) and the bracket (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
