Install the BDC control unit
WARNING:
Work on components with requirements for a secure energy supply
Ensure proper function after a repair
Ensure proper function after a repair
- Lines are allowed to have only one repair area.
- Notices in the diagnostic system circuit diagrams must be observed.
- When components are replaced, the notices in the applicable BMW parts catalogue must be observed.

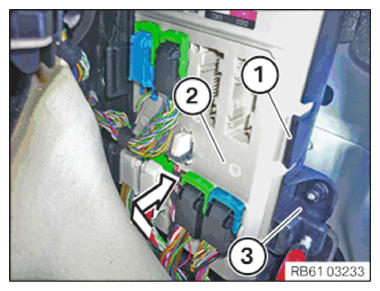

- Maneuver the BDC control unit (2) into the holder (3) in the arrow direction.
- Snap the BDC control unit (2) into the detent (1).
- Connect all connectors and lock.

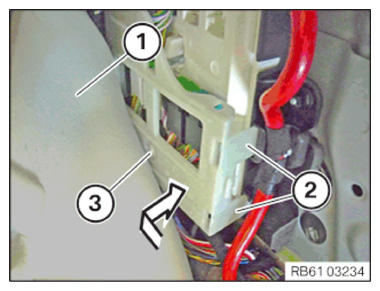

- Insert the cover (3) in arrow direction and snap it into the locks (2).
- Position the carpet (1).

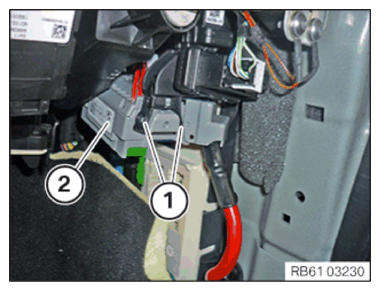

- Insert the power distribution box (2) to the top and snap it correctly into the locks (1).
Follow-up work
- Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
- Refer to INSTALLING INSIDE RIGHT DOOR SILL COVER STRIP .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
- Refer to INITIALIZING COMPONENT PROTECTION .
