Remove the control unit for the additional seat function
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING FRONT DOOR TRIM PANEL .
- Refer to REMOVING THE SOUND INSULATION ON THE FRONT DOOR TRIM PANEL .

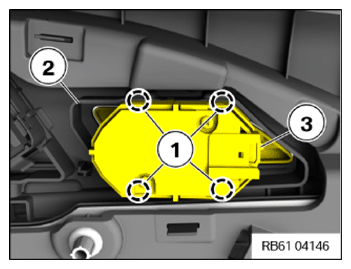

- Release detents (1) on the decorative trim (2).
- Remove the control unit (3) for the additional seat function.
