Removing and installing/replacing center armrest storage compartment LED (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove INSERT in center armrest storage compartment.

Courtesy of BMW OF NORTH AMERICA, INC.

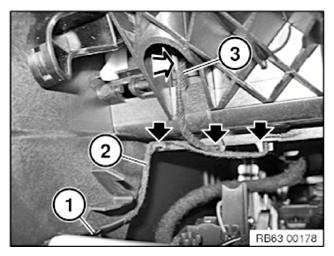

Unfasten plug connection (1) and disconnect.

Feed cable (2) out of center console.

Press LED module cover (3) in direction of arrow out of center console.

Feed out LED module cover (3) with cable (2) from center console.

Installation note:

Make sure cable (2) is correctly laid in center console.

Make sure LED module cover (3) is correctly seated in center console.

Replacement:

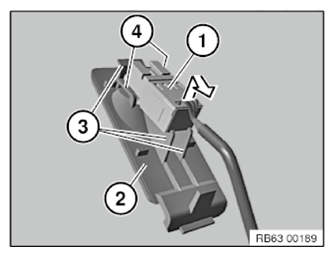

Disengage and remove LED module (1) from cover (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (3) and guides (4) on cover (2) must not be damaged or missing.

Ensure correct seat of LED module (1) on the cover (2).
