Mounting seal on the front door
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The repair notes of bonded seals form the basis for these repair notes and must be observed without fail.
For additional information see: 54 10... REPAIR NOTES for bonded seals
The repair notes of bonded seals form the basis for these repair notes and must be observed without fail.
For additional information see: 54 10... REPAIR NOTES for bonded seals
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

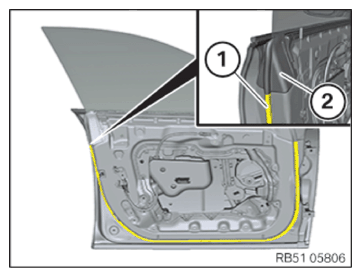

- Feed in the seal (1) below the window cavity seal (2).
- Start bonding the door seal (1) in area (2).
- Glue seal as follows:
- Gradually pull off protective film
- Align seal (1) corresponding to the specified dimensions (X) or the templates and press on lightly
- Check the position of the sealing (1) and correct if necessary
- Do not overstretch or compress the sealing (1) when positioning it
- Maximum permissible sag of the seal (1) during the positioning process is 30 mm
- Always apply pressure perpendicular to the bonding surface to affix the sealing (1)
- Affix sealing (1) with - firm thumb pressure

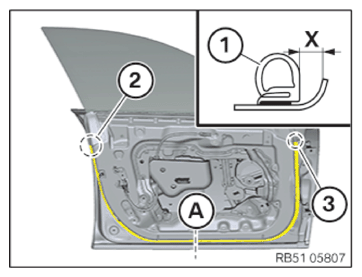

| Area | Dimension x |
|---|---|
| A | 5 mm |
- Feed in the seal (1) in the area (3) below the window cavity seal.
- Position the seal (1) along the template (3):
The edge of the seal (1) is flush with the mark (4) (arrow) of the template (3).
(1) = Sealing
(2) = Adhesive tape of seal
(3) = Template
(4) = Mark for the seal
