61 13... Connector housing, LCC contact (load current contact) (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 317

G14171354

Courtesy of BMW OF NORTH AMERICA, INC.

Socket housing:

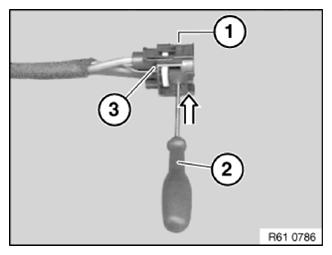

Press lock (1) with suitable tool (2) in arrow direction out of socket housing (3).

G14171355

Courtesy of BMW OF NORTH AMERICA, INC.

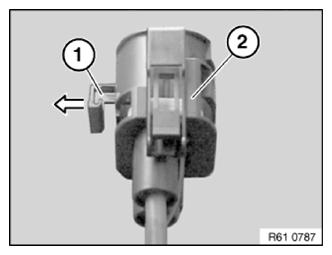

Pull lock (1) out of socket housing (2).

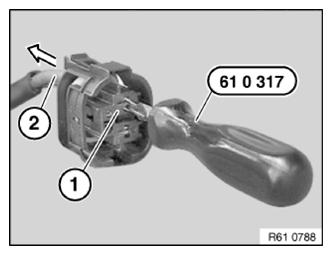

Insert special tool 61 0 317 into socket housing (1) and pull out wiring with LCC contact (2) in arrow direction.

G14171356

Courtesy of BMW OF NORTH AMERICA, INC.

G14171357

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

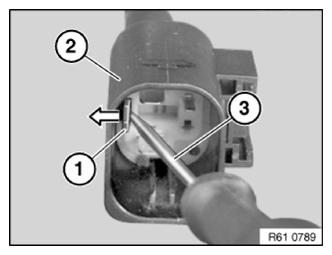

Unlock locking slide (1) of pin housing (2) with suitable tool (3) in arrow direction.

G14171358

Courtesy of BMW OF NORTH AMERICA, INC.

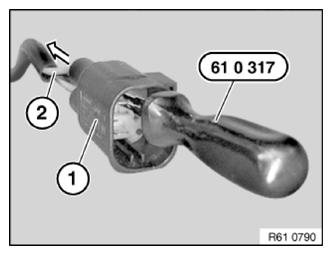

Insert special tool 61 0 317 into pin housing (1) and pull out wiring with LCC contact (2) in arrow direction.
