Install inner door opener

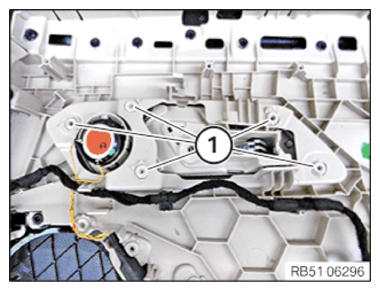

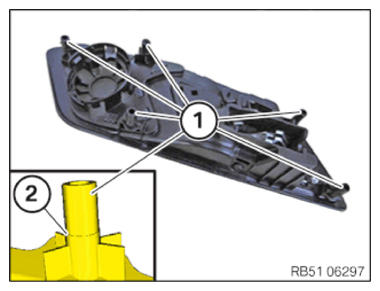

- Saw off all welding pins (1)
along the molding (2)
.
- Remove welding remnants on door trim panel with a scalpel.
- Feed the door opener into the door trim panel.
- Insert the repair screws into the welding pins (1)
and tighten.TIGHTENING TORQUE SPECIFICATION
Repair screw to door trim panel Oval-head screw
M4x10Tightening torque 2.0 Nm - If applicable, install the present LED module.
