Tightening the screw connections on the trailing arm
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

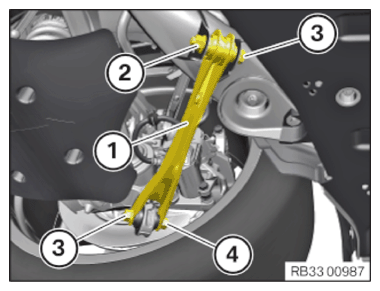

- Counter support the screw (3) and release the nuts (2) and (4) by one turn.
- Tighten the nut (2) on trailing arm (1).TIGHTENING TORQUE SPECIFICATION
Trailing arm to rear axle support M12 Replace screw and nut.
Tighten in normal position.Tightening torque 100 Nm - Tighten the nut (4) on trailing arm (1).TIGHTENING TORQUE SPECIFICATION
Trailing arm to wheel carrier M12 Replace screw and nut.
Tighten in normal position.Tightening torque 100 Nm
