Installing the speaker trim on the left and right center bass

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the speaker trim for the central bass

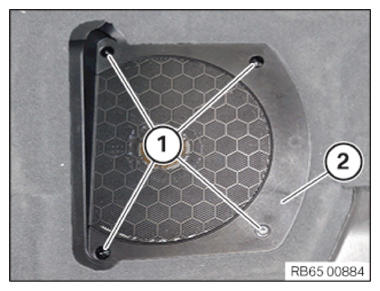

Position the speaker trim for the central bass (2).
Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Central bass speaker trim
screw	Tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
