For continuing work on the front seat: Mount the front seat on the universal seat mount and connect with the wiring harness if necessary
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Use of the universal seat mount is recommended for carrying out expert repairs.
Use of the universal seat mount is recommended for carrying out expert repairs.

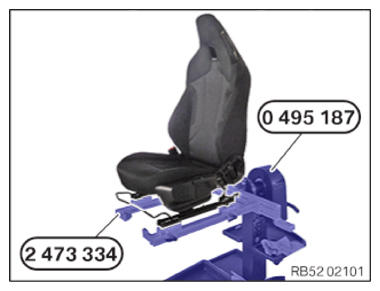

- Fit special tool 2 473 334
onto special tool 0 495 187 (00 2 300)
.CAUTION: Heavy component.
Heavy components can lead to injury or damage.- Remove and install heavy components with the aid of another person/other persons.
- Mount the front seat onto the special tool 2 473 334
.
To ensure a professional repair, it is recommended to use the special tool 0 495 187 (00 2 300) and 2 473 334 .
NOTE: TECHNICAL INFORMATION

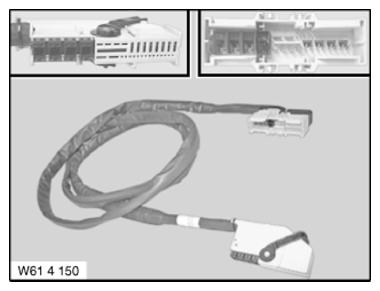

Only use the following steps if the front seat has to be adjusted electrically. - In order to adjust the front seat in a removed state, connect the special tool 0 496 519 (61 4 150)
with the vehicle wiring harness and the removed front seat.

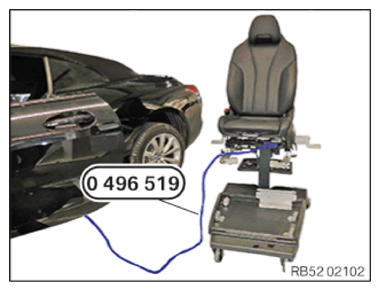

- Connect special tool 0 496 519 (61 4 150)
to the wiring harness of the vehicle and the removed front seat to adjust the front seat.
