Fitting the seat cover with the cushion for the front seat

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

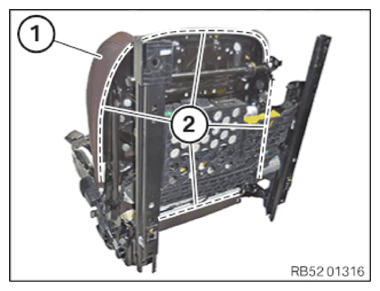

Insert seat cover (1) with the cushion and position.
Attach seat cover (1) in the areas (2).
If necessary, connect and lock existing connectors and clip in the cable bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

Fastening the ground cable of the seat occupancy mat (CIS)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

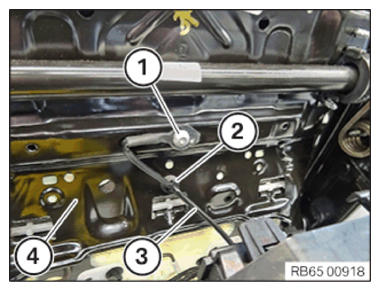

Correctly position the ground cable (3) for the seat occupancy mat on the seat mechanism (4).
Close the cable clip (2).

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Ground cable of the seat occupancy mat (CIS) on seat
screw	Tightening torque	4.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

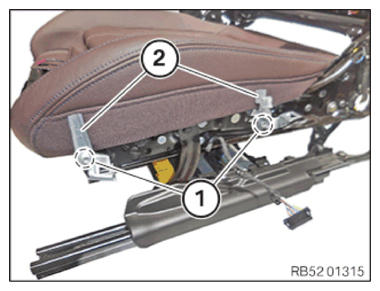

Position all the holders (2) and tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Seat trim to seat frame
Sheet metal screw	Tightening torque	2.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
