Attaching the camber control arm and trailing arm to the wheel carrier

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

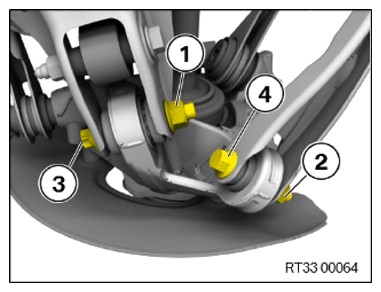

Replace the nuts (1) and (2) and the screws (3) and (4).
Parts: Nut and screws
Position the camber control arm and trailing arm on the wheel carrier.
Insert screws (3) and (4).

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Camber control arm to wheel carrier
M14 Replace screw and nut.	Joining torque	165 Nm
M14 Replace screw and nut.	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

Tighten the nut (2) hand-tight.
The screw connection is tightened later in NORMAL POSITION .
