Securing the high-voltage cables on the EME
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
Switch off high-voltage system.
WARNING:
Damaged high-voltage cables, high-voltage connectors and high-voltage components
.
Mortal hazard through electric shock!
Mortal hazard through electric shock!
- Do not repair damaged high-voltage cables, high-voltage connectors and high-voltage components. They must always be replaced with new parts in their original packaging.
- If high-voltage cables, high-voltage connectors and high-voltage components are damaged and contact protection is not longer provided, technical support must be contacted immediately.
NOTE:
TECHNICAL INFORMATION
Observe the additional information for unlocking and disconnecting various plug connecting in electrical and hybrid vehicles!
Observe the additional information for unlocking and disconnecting various plug connecting in electrical and hybrid vehicles!
- Feed in and install the connector (2).

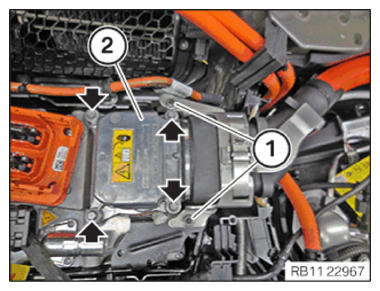

- Tighten the screws (arrows).TIGHTENING TORQUE SPECIFICATION
High-voltage cable to electrical machine electronics M6x25
Tighten screws in crosswise sequence.Joining torque
Tightening torque3 Nm

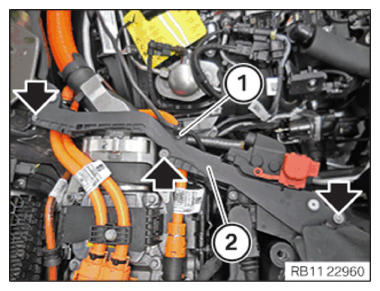

8 Nm - Tighten nuts (1).TIGHTENING TORQUE SPECIFICATION

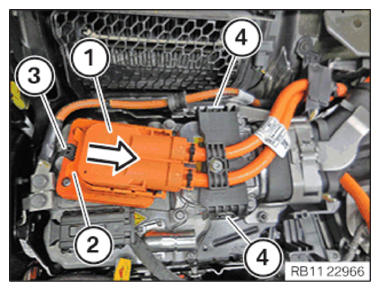

Holder for tension relief M6 tightening torque 8 Nm - Feed in and install the high-voltage connector (1).
- Locks (4) must engage audibly.
- Lock the lock (2) in arrow direction .
- Connect and lock the bridge (3) for the high-voltage contact monitor.

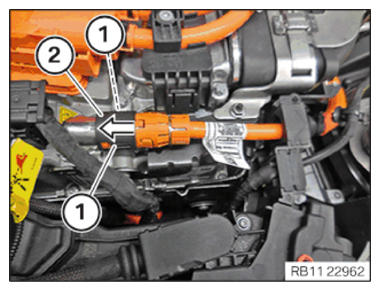

- Feed in and install the connector (2) in arrow direction .
- Locks (1) must engage audibly.

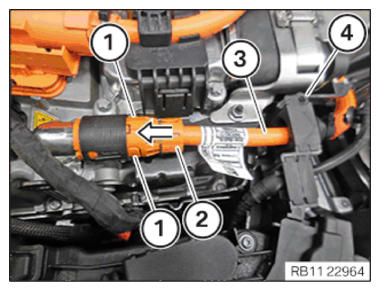

- Hook the high-voltage cable (3) to the rubber grommet (4).
- Lock the circlip (2) in arrow direction .
- Locks (1) must engage audibly.
- Feed in the sealing frame (2) and install.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATION
Sealing frame at the top on sealing frame at the bottom RF5x26.5 tightening torque 2.5 Nm - Secure the clamp (1).
