Installing the rubber mount for the transmission bearing (all-wheel drive)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Rubber mounts in the A and B variants can be installed.
Rubber mounts in the A and B variants can be installed.
- Version A:
Use special tools 2 445 327 and 0 496 552 (33 3 010) .

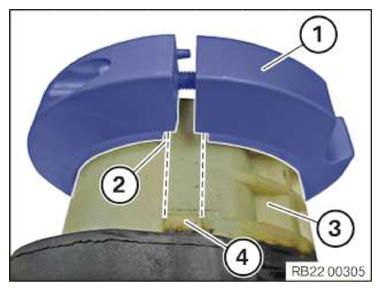

Align pliers (1) centrally on the guide lug (4) of the rubber mount (3) and the recess (2).

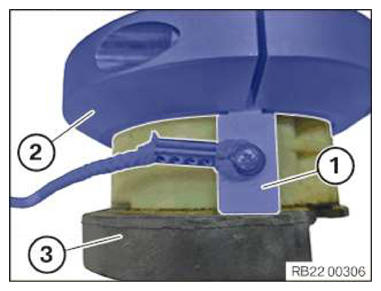

- Version A:
Install the shaped part (1) between the pliers (2) and the rubber mount (3).
Screw pliers (2) tightly on rubber mount (3) remove shaped part (1).
- Version B:
Use special tools 2 445 327 and 0 496 552 (33 3 010) .

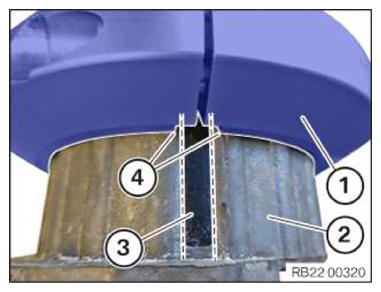

Align pliers (1) centrally on the mark (3) on the rubber mount (2) and the recess (4) on the pliers (1).
Screw pliers (1) tightly on rubber mount (2).
- Determine and use the respective pressure disc (3) according to the rubber mount.
There are version A and B pressure discs.

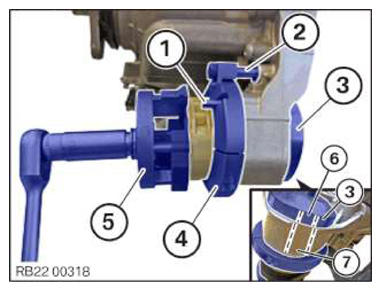

Rubber mount Thrust washer A A F A G A H B M B Y B - Position pliers (4) over the pin (1).
- Using the screw connection (2), attach the pliers (4) to the rubber mount on the transfer box.
- Remove the pin (1).
- Align the surface (6) of the pressure disc (3) centrally with the surface (7) of the transfer box.
- Pull in the rubber mount to a distance (1) of approx. 10 mm.
- Release the screw connection of the pliers (3) along with the screw connection (2).
- Remove pliers (3).

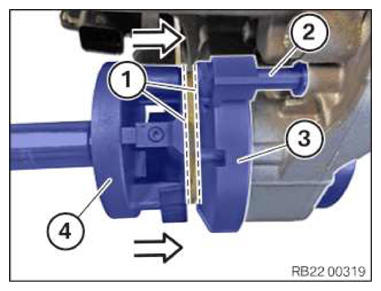

- Pull the rubber mount with the thrust piece (4) up to the stop on the transfer box.
- Remove special tools 2 445 327
and 0 496 552 (33 3 010)
.
