Install the wiring harness
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

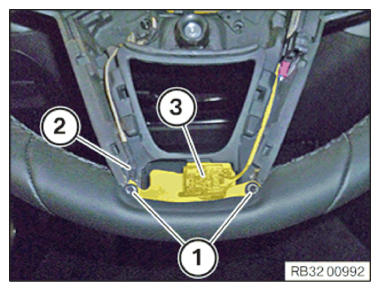

- Position the (3) vibration actuator.
- Connect and lock connector for the vibration actuator (3).
- Position the (2) grounding cable.
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATION

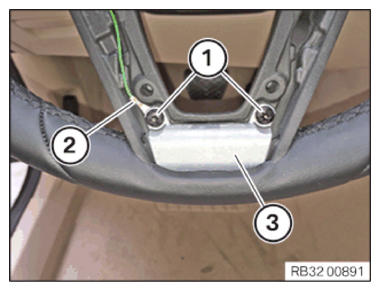

Balance weight/vibration actuator on steering wheel Screw Tightening torque 2.2 Nm - Position the balance weight (3) if necessary.
- Position the (2) grounding cable.
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION

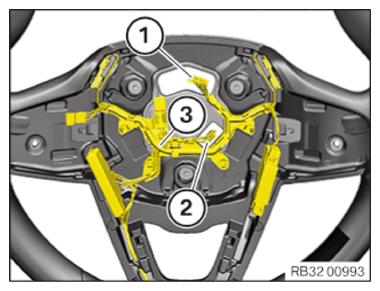

Balance weight/vibration actuator on steering wheel Screw Tightening torque 2.2 Nm - Position and fasten the wiring harness (3) to the steering wheel.
- Connect connectors (1) and lock.
- Connect and lock the connector (2) if necessary.
